Carton Steel Pap MU Bushing Flanged Bearing Slitted Type Tin Plating

Product Categories
JIAXING VIIPLUS INTERNATIO NAL CO.,LTD
Contact Now

Carton Steel Pap MU Bushing Flanged Bearing Slitted Type Tin Plating

  • 1
  • 2

Brand Name : VIIPLUS BUSHINGS SUPPLIER

Model Number : PTFE POM BUSHINGS

Certification : ISO 3547 DIN 1494 Assembly Standard Tolerance

Place of Origin : Composite plain cylindrical bushings manufacturer

MOQ : 1000 Piece/Pieces

Price : $0.05 - $1.00 / Pieces

Payment Terms : TT in advance,Western Union

Supply Ability : Special Customized Lubricating Bushings Manufacturing

Delivery Time : 7~15 work days

Packaging Details : Packaging: Export carton; Wooden case ; Wood pallet.

Meterial : Carton steel , Bronze ,

Plating : Tin or copper

Characteristic : Low-maintenance and maintenance-free plain bearings

Type : bushes, collar bushes, washers, strips or special designs

Size : standard size available

Quality : OEM

Port : Shanghai

Application : DMFW bushing

Bearing Bushing Factory Price : tiffany@viiplus.com

Self-lubricating Bearing Bushing Manufacturer : https://www.viiplus.com/

High Light : Coated Self Lubricating Plain Bearing, ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing

characteristic : Втулки скольжения (биметаллические подшипники скольжения)

Dry slide bearing : Self Lubricating Plain Bearing Work in High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced costs & downtime. Non-galling. Increased reliability. Run dry & keeps running.

Bush Bearings Manufacturers Suppliers Exporters : plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/

Contact Now

Carton Steel Pap MU Bushing Flanged Bearing of the Slitted Type with Tin Plating is a high-performance bearing solution designed to meet the demands of various industrial applications.

Constructed from durable carton steel, this bearing bushing ensures robustness and stability under heavy loads. The (Polytetrafluoroethylene) material provides excellent lubrication and wear resistance, ensuring smooth operation and extended service life.

The flanged design adds strength and rigidity to the bearing, while the slitted type allows for easy installation and adjustment. The tin plating on the bearing surface further enhances its corrosion resistance and durability.

Wh you need a bearing for heavy machinery, automotive components, or any other industrial application, the Carton Steel Pap MU Bushing Flanged Bearing of the Slitted Type with Tin Plating is a reliable and efficient choice. Its precision engineering and high-quality materials ensure optimal performance and long-term reliability.

Carton Steel Pap MU Bushing Slitted Type Tin Plating

flanged bearing, Metal Bush with ptfe Coating

MU Bushes PTFE Bushing Slitted type Bearings supply Metal + Sintered Bronze POM sheets. With Steel Backing, Bushings thrust washers and strips - Bearings, csb 50 bushings, Same-Day Shipments
Metal-polymer bearings PTFE BUSH WITH BRONZE BACKING for dry and lubricated applications in corrosive environments. Cylindrical & flanged bushes, thrust washers.

tulejki samosmarujące

Steel backing+ bronze powder with /Pb dry bearings
1. /Pb mixture 0.01~0.03mm, provides an excellent initial transfer film, which effectively coats the mating surface of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder 0.20-0.35mm, provides Max. thermal conductivity away from the bearing surface, also serves as a reservoir for the -lead mixture.
3. Low-carbon steel, gives exceptionally high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating 0.002mm, provides good corrosion resistance.
5. Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, forming a transfer film can protect the mating metal surface, suitable for rotary and oscillating movement. High chemical resistance, low absorption of water and swelling. Also performs well with lubrication

MU ( Steel backing +bronze Powder+ layer)

Carton Steel Pap MU Bushing Flanged Bearing Slitted Type Tin Plating

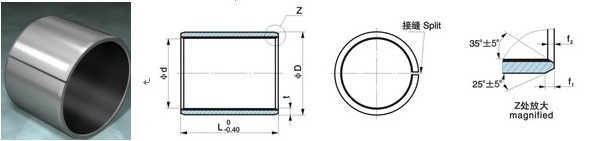

MU Bushes Metric Standard(DIN1494)

Carton Steel Pap MU Bushing Flanged Bearing Slitted Type Tin Plating

Type Ø D Ø d Axle Housing f1 f2 L±0.25
8 10 15 20 25 30 40
MU 5.5 4 40 -0.008 5.5+0.006 0 0.3 0.2 0408 0410
MU 7 5 5-0.010 -0.022 7+0.015 0 0.6 0.3 0508 0510
MU 8 6 6-0.010 -0.022 8+0.015 0 0608 0610 0615
MU 10 8 8-0.013 -0.028 10+0.015 0 0808 0810 0815
MU 12 10 10-0.013 -0.028 12+0.018 0 1008 1010 1015 1020
MU 14 12 12-0.016 -0.034 14+0.018 0 1208 1210 1215 1220
MU 15 13 13-0.016 -0.034 15+0.018 0 1310 1315 1320
MU 16 14 14-0.016 -0.034 16+0.018 0 1410 1415 1420
MU 17 15 15-0.016 -0.034 17+0.018 0 1510 1515 1520 1525
MU 18 16 16-0.016 -0.034 18+0.018 0 1615 1620 1625
MU 19 17 17-0.016 -0.034 19+0.021 0 1715 1720 1725
MU 20 18 18-0.016 -0.034 20+0.021 0 1815 1820 1825
MU 23 20 20-0.020 -0.041 23+0.021 0 0.8 0.4 2015 2020 2025 2030
MU 25 22 22-0.020 -0.041 25+0.021 0 ? 2220 2225 2230
MU 27 24 24-0.020 -0.041 27+0.021 0 2420 2425 2430
MU 28 25 25-0.020 -0.041 28+0.021 0 2515 2520 2525 2530
MU 32 28 28-0.020 -0.041 32+0.025 0 1.2 0.6 2815 2820 2825 2830
MU 34 30 30-0.020 -0.041 34+0.025 0 3020 3025 3030 3040
MU 36 32 32-0.025 -0.050 36+0.025 0 3220 3225 3230 3240
MU 39 35 35-0.025 -0.050 39+0.025 0 3520 3525 3530 3540
MU 42 38 38-0.025 -0.050 42+0.025 0 3820 3825 3830 3840
MU 44 40 40-0.025 -0.050 44+0.025 0 4020 4025 4030 4040
MU 50 45 45-0.025 -0.050 50+0.025 0 1.6 0.8 4520 4525 4530 4540
MU 55 50 50-0.025 -0.050 55+0.030 0 5030 5040
MU 70 65 65-0.030 -0.060 70+0.030 0 6540 6550 6560
MU 75 70 70-0.030 -0.060 75+0.030 0 7040 7050 7060 7070
MU 80 75 75-0.030 -0.060 80+0.030 0 7550 7560 7570
MU 85 80 800 -0.045 85+0.035 0 8040 8050 8060 8070
MU 90 85 850 -0.054 90+0.035 0 8550 8560 8570 8580
MU 95 90 900 -0.054 95+0.035 0 9050 9060 9070 9080
MU 100 95 950 -0.054 100+0.035 0 9550 9560 9570 9580
MU 105 100 1000 -0.054 105+0.035 0 10050 10060 10070 10080
MU 110 105 1050 -0.054 110+0.035 0 10550 10560 10570 10580
MU 115 110 1100 -0.054 115+0.035 0 11050 11060 11070 11080
MU 120 115 1150 -0.054 120+0.035 0 11550 11560 11570 11580
MU 125 120 1200 -0.054 125+0.040 0 12060 12070 12080
MU 130 125 1250 -0.063 130+0.040 0 12560 12570 12580
MU 135 130 1300 -0.063 135+0.040 0 13060 13070 13080
MU 140 135 1350 -0.063 140+0.040 0 13560 13570 13580
MU 145 140 1400 -0.063 145+0.040 0 14060 14070 14080
MU 150 145 1450 -0.063 150+0.040 0 14560 14070 14080
MU 155 150 1500 -0.063 155+0.040 0 15060 15070 15080
MU 160 155 1550 -0.063 160+0.040 0 15560 15570 15580
MU 165 160 1600 -0.063 165+0.040 0 16060 16070 16080 160100
MU 180 165 1650 -0.063 180+0.040 0 16570 16580 165100
MU 190 185 1850 -0.072 190+0.046 0 18570 18580 185100
MU 200 195 1950 -0.072 200+0.046 0 19570 19580 195100
MU 210 205 2050 -0.072 210+0.046 0 20570 20580 215100
MU 220 215 2150 -0.072 220+0.046 0 21570 21580 215100
MU 230 225 2250 -0.072 230+0.046 0 22580 225100
MU 240 235 2350 -0.072 240+0.046 0 23580 235100
MU 250 245 2450 -0.072 250+0.046 0 24580 245100
MU 260 255 2550 -0.081 260+0.052 0 25580 255100
MU 280 275 2750 -0.081 280+0.052 0 27580 275100
MU 305 300 3000 -0.081 305+0.052 0 30080 300100

-------------------------------------------------------------------------------------------

MS Washer Metric size in MM (DIN1494)

Carton Steel Pap MU Bushing Flanged Bearing Slitted Type Tin Plating

Designation Ø d Ø D Ø D1±0.5 h0 -0.20 L±0.25 f1 f2 Axle Housing
MUF 06040 6 8 12 1.0 4 0.6 0.3 6-0.010 -0.022 8+0.015 0
MUF 06070 7
MUF 08055 8 10 15 5.5 8-0.013 -0.028 10+0.015 0
MUF 08075 7.5
MUF 10070 10 12 18 7 10-0.013 -0.028 12+0.018 0
MUF 10090 9
MUF 10120 12
MUF 12070 12 14 20 7 12-0.016 -0.034 14+0.018 0
MUF 12090 9
MUF 12120 12
MUF 14120 14 16 22 12 14-0.016 -0.034 16+0.018 0
MUF 14170 17
MUF 15090 15 17 23 9 15-0.016 -0.034 17+0.018 0
MUF 15120 12
MUF 15170 17
MUF 16120 16 18 24 12 16-0.016 -0.034 18+0.018 0
MUF 16170 17
MUF 18120 18 20 26 12 18-0.016 -0.034 20+0.021 0
MUF 18170 17
MUF 18200 20
MUF 20115 20 23 30 1.5 11.5 0.8 0.4 20-0.020 -0.041 23+0.021 0
MUF 20165 16.5
MUF 20215 21.5
MUF 22150 22 25 32 15 22-0.020 -0.041 25+0.021 0
MUF 22220 20
MUF 25115 25 28 35 11.5 25-0.020 -0.041 28+0.021 0
MUF 25165 16.5
MUF 25215 21.5
MUF 30160 30 34 42 2.0 16 1.2 0.6 30-0.020 -0.041 34+0.025 0
MUF 30260 26
MUF 35160 35 39 47 16 35-0.025 -0.050 39+0.025 0
MUF 35260 26
MUF 40260 40 44 53 26 40-0.025 -0.050 44+0.025 0

Carton Steel Pap MU Bushing Flanged Bearing Slitted Type Tin Plating

Carton Steel Pap MU Bushing Flanged Bearing Slitted Type Tin Plating

CHARACTERISTICS

PTFE BUSH WITH BRONZE BACKING offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions

  • Bushing material suitable for lubricated applications
  • Anti-friction bearing suitable for linear, oscillating and rotating movements
  • Approved to standard FAR 25.853 and FAR 25.855 (Federal Aviation Regulations) and ASTM E162:2016 – surface flammability testing for aircraft interior applications
  • Tested acc. to ASTM E595/ECSS-Q-ST-70-02C - Outgassing properties of materials used in Spacecraft equipment
  • Approved to standard DIN EN 1797 and ISO 21010 (Cryogenic Vessels – Gas/Material Compatibility) for piping, valves, fittings and other components in both gaseous and liquid oxygen for up to maximum temperature of 60°C and oxygen pressure of 25 bars. Contact VIIPLUS for further details.

​
PTFE BUSH WITH BRONZE BACKING
Dry Operation Very Good
Lubricated Operation Good
Greased Operation Fair
Machinable Consult with Applications Engineer
RoHS Compliant Not compliant
Standard Sizes Available
Application Excellence
Metal-Polymer Low Friction Plain Bearings®
Good
Very Good
Good
Consult with Applications Engineer
Compliant
Available
DP10
Good
Good
Fair
Consult with Applications Engineer
Compliant
Not Available

Carton Steel Pap MU Bushing Flanged Bearing Slitted Type Tin Plating

ADVANTAGES

Improved energy efficiency with the low friction performance of -enriched overlay;
Extended service life with a high wear-resistant bronze layer;
Zero maintenance as self-lubricating bearings can operate dry without grease;
Greater reliability than bimetallic bearings by avoiding potential shaft/bearing seizure under boundary lubricated conditions and frequent stop/start operation;
Compact, lightweight designs with thin-wall bearing construction;
Reduced noise with no metal-to-metal contact between the bearing and the shaft;
Quick, simple assembly without expensive mounting tools.

Usage Range
dry very good
oil lubricated good
grease lubricated fair
water lubricated good
process fluid lubricated fair

Physical & Mechanical Properties
Items Value Unit
Thermal Conductivity 18 W/mK
Maximum Operating Temperature 280 °C
Minimum Operating Temperature -200 °C
Compressive Yield Strength 300 N/mm2
Maximum Static Load 140 N/mm2
Maximum Dynamic Load 140 N/mm2
Maximum Sliding Speed -dry 2.5 m/s
Maximum PV Factor-dry, continuous operation 1.8 N/mm2 * m/s
Maximum PV Factor-dry, intermittent operation 3.5 N/mm2 * m/s
Coefficient of friction -dry 0.02-0.25 　
Coefficient of friction -oil lubricated 0.02-0.12 　
  Carton Steel Pap MU Bushing Flanged Bearing Slitted Type Tin Plating
